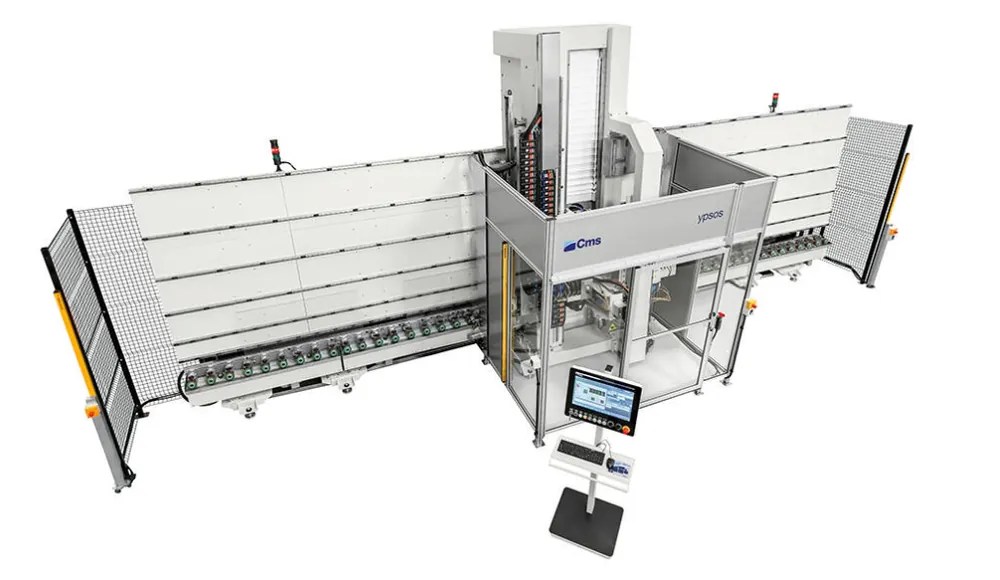

CMS ypsos — the newest Italian vertical CNC machining centre for float and laminated glass, and the first vertical CNC able to grind and polish with two heads simultaneously. Performs seaming, polished and industrial grinding, milling and coaxial drilling. Three standard sizes up to 6,000×3,300 mm, fully automatic wheel/core-bit truing, SCADA supervision software, usable stand-alone, in line with a drilling-milling machine or inside an insulating line.
Technical Data (from CMS.it)
| Sheet max. length | 3,200 / 4,500 / 6,000 mm |
| Sheet max. height | 2,200 / 2,800 / 3,300 mm |
| Sheet min. size | 420 × 270 mm |
| Sheet thickness | 3–30 mm |
| Tool magazines | Up to 2 rotary × 13 positions (ISO 40) |
| Max. wheel pack | 50 mm |
