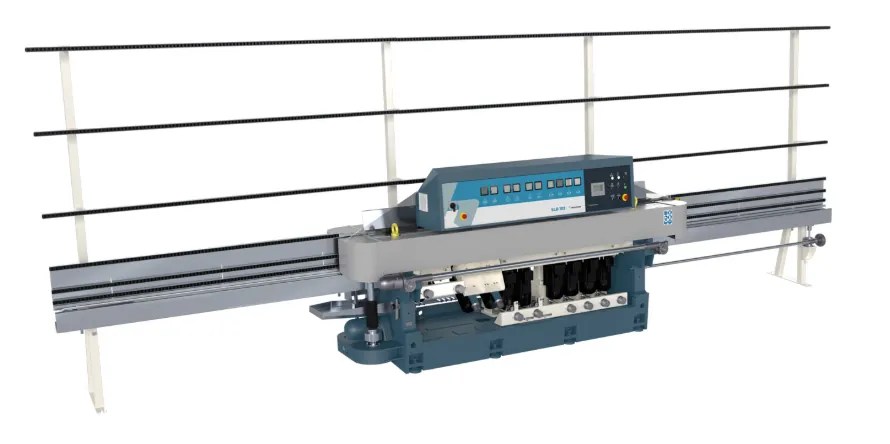

Heavy-duty, higher-speed evolution of the ELB series — 10 wheels with automatic wear compensation on polishing spindles, PLC Siemens control and dual spindle speeds (1400/2800 rpm). Factory-tested: 1,000 m ground in 8 hours at 4 m/min with zero manual intervention. One polishing wheel set lasts up to 125,000 m (~520 hours).
Technical Data
| Speed | 0.35–5.4 m/min |
| Glass thickness | 2–30 mm |
| Installed power | 30 kW |
| Min. glass size | 40×40 mm (≤6 mm) · 50×50 mm (≤20 mm) · 70×70 mm (30 mm) |
| Weight | 4,100 kg |
| Working height | 825 mm |
| Overall dimensions (L×W×H) | 7,850 × 1,200 × 2,750 mm |
