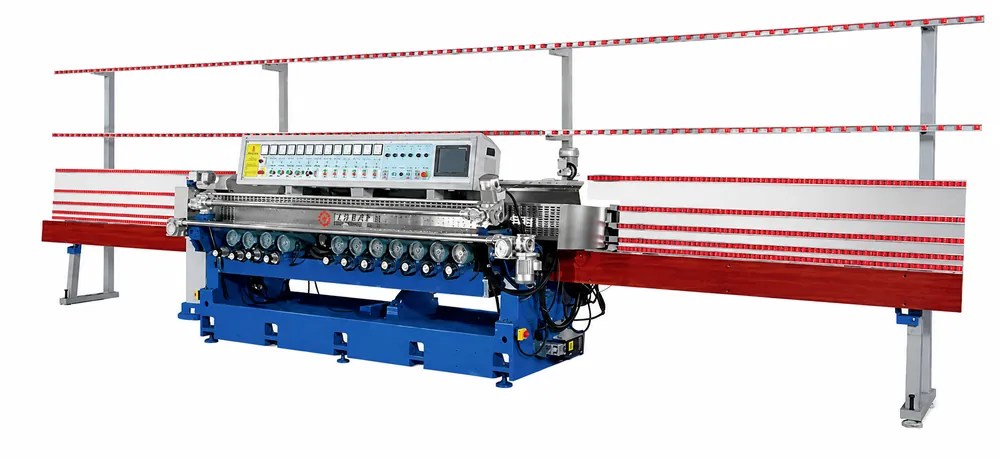

Automatic straight-line beveller (4 felt + 7 bevelling + 1 edging wheels) — ABB grinding motors with P5-grade paired bearings, Mitsubishi PLC and inverter, MCGS 10" touchscreen, twice-annealed cast-iron beams for vibration-free stability, one-button safe shutdown and 304 stainless polishing/circulation tanks.
Technical Data
| Max. bevel width | 60 mm |
| Min. glass size | 60×50 mm |
| Glass thickness | 3–19 mm |
| Transport speed | 0.6–4.4 m/min |
| Accuracy | Diagonal ≤1 mm/m · Parallel ≤0.5 mm/m |
| Installed power | 27.5 kW |
| Air pressure | 6–8 kg/cm² |
| Weight | 5,500 kg |
| Overall dimensions (L×W×H) | 8,300 × 1,550 × 2,250 mm |
