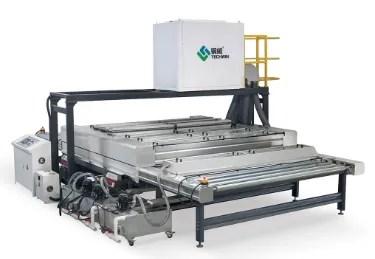

TechWin horizontal glass washer, max width 3,300 mm — two independent inverter-controlled drying blowers (auto slow-down when no glass, one blower can switch off for narrow glass), 4 water tanks (3 washing + 1 pre-wash), PLC + touchscreen, auto-sync with double edging lines, and a no-contact brush mode for double Low-E washing as used at Xinyi Glass.
Technical Data
| Max. glass width | 3,300 mm |
| Min. glass size | 400×400 mm |
| Drying blowers | 2 independent, inverter-controlled |
| Water tanks | 4 (3 washing + 1 pre-wash) |
| Brushes | Standard Ø0.25 mm + fine Ø0.08 mm |
| Control | PLC + touchscreen with motorised roller-gap adjustment |
